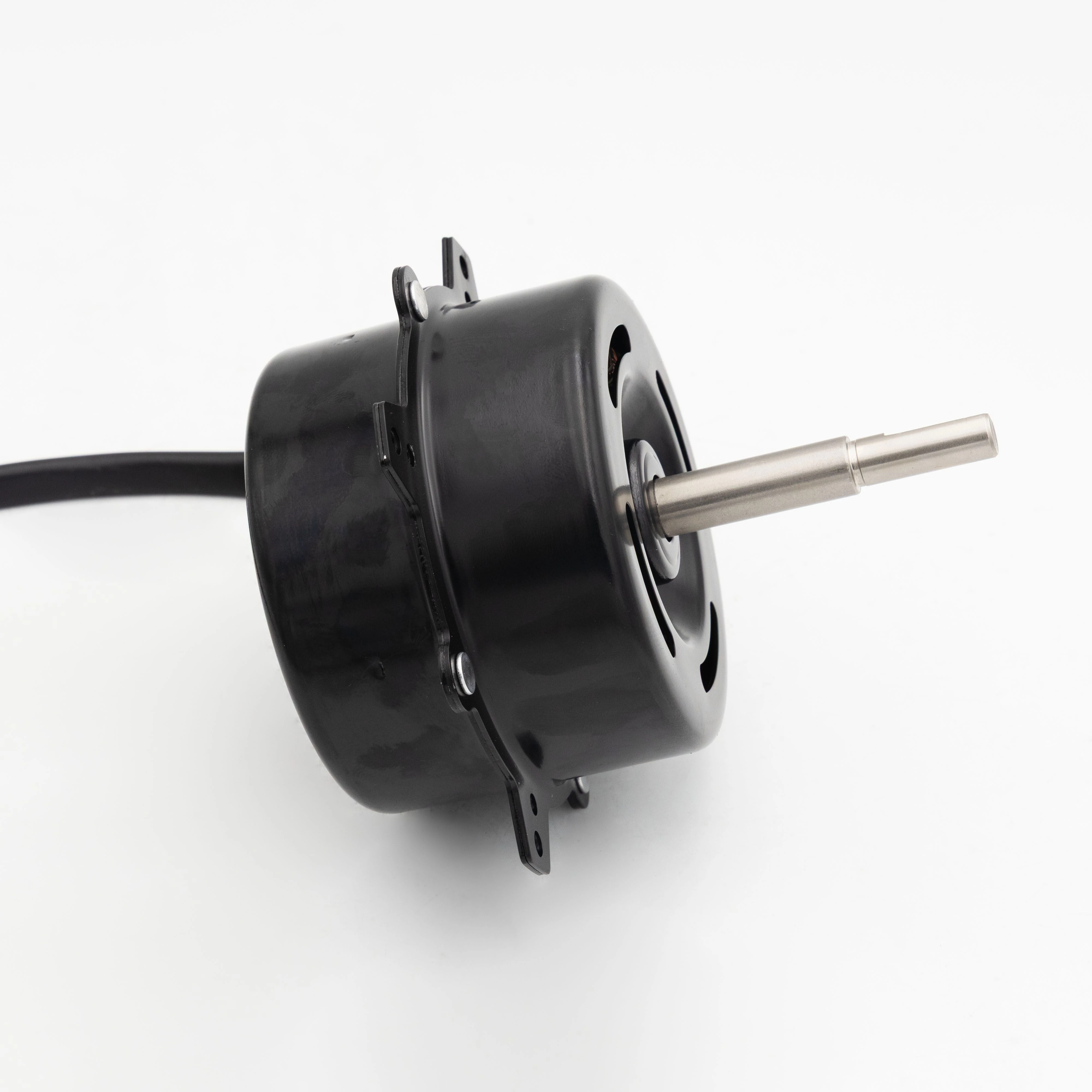

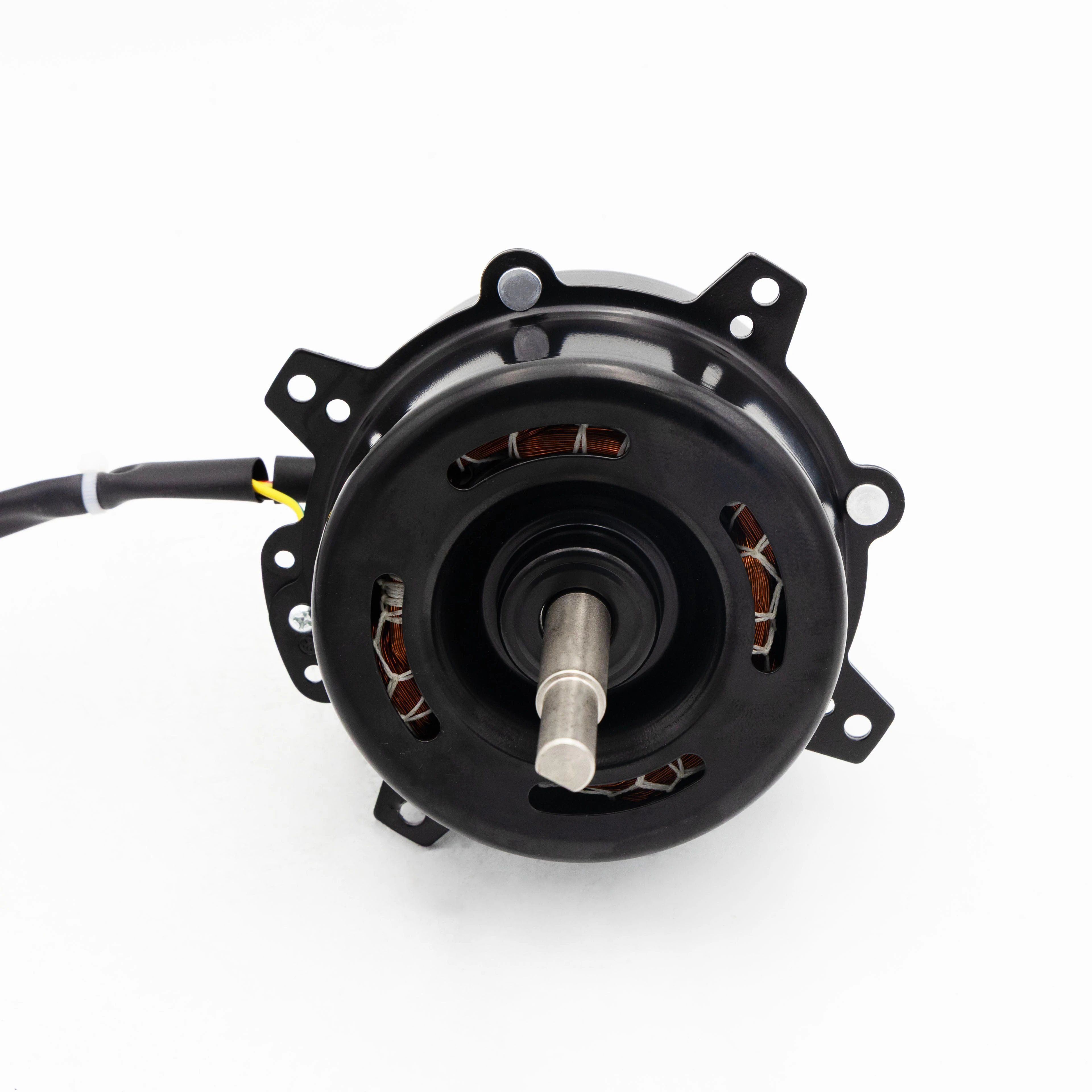

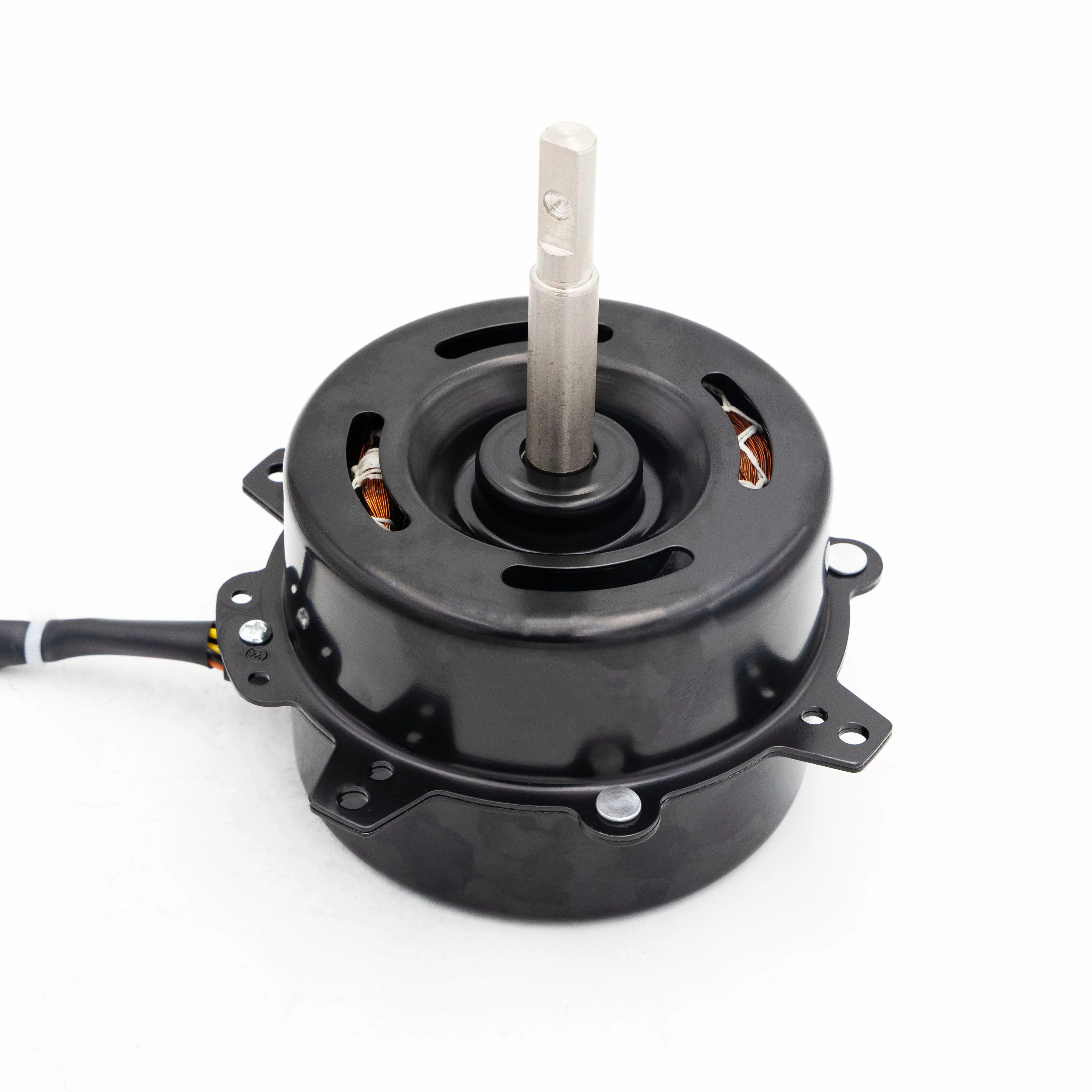

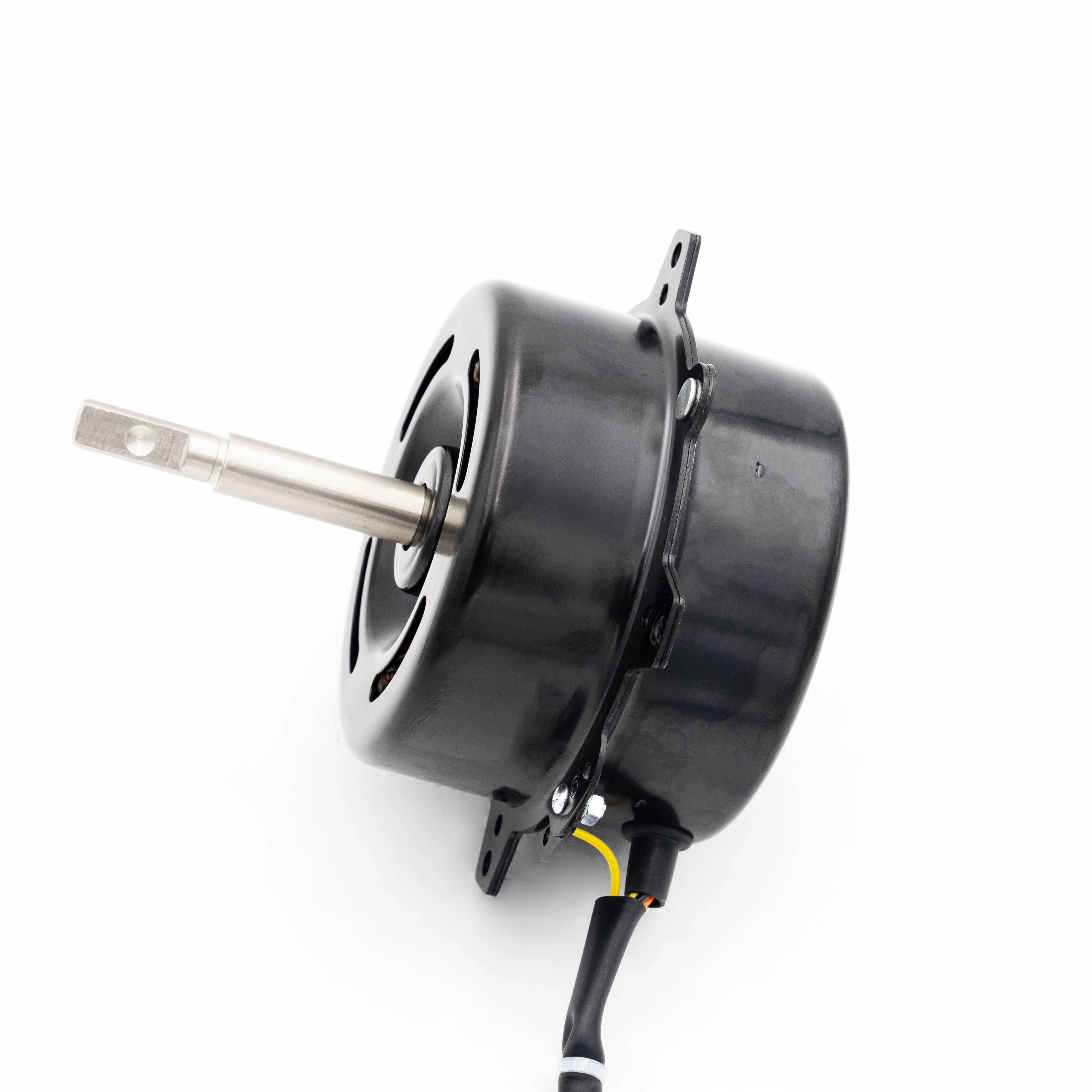

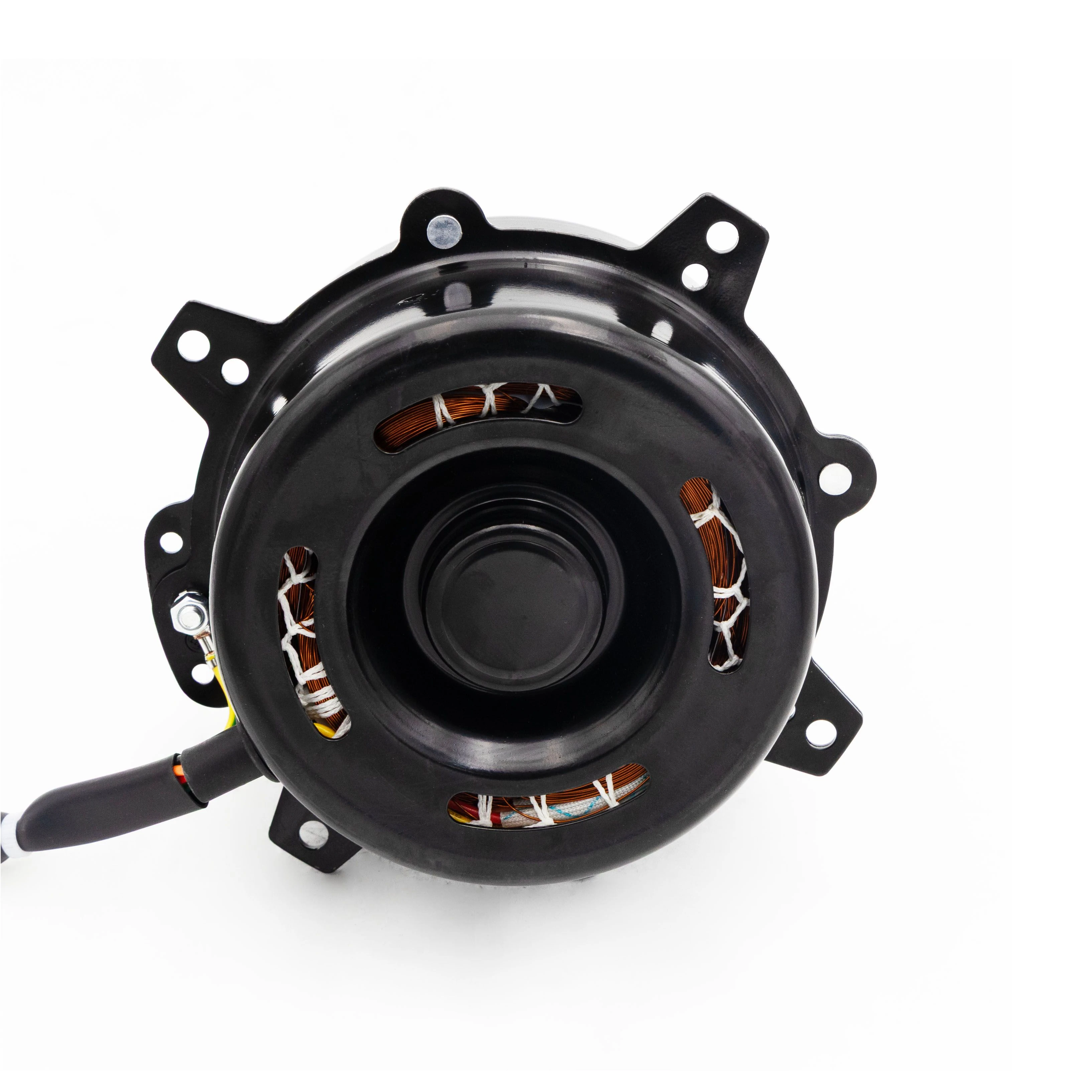

YYF-200-4 200W Portable Air Conditioner Evaporator Fan Motor
The YYF-200-4 is an evaporator fan motor designed for portable air conditioner applications. It is used to drive the evaporator-side airflow system, helping move indoor air across the evaporator heat exchanger and circulate cooled air back into the room. Contact JIUHE with your fan assembly, mounting and electrical requirements for OEM application review.
- Motor type
- Single-Phase Asynchronous
- Voltage / Frequency
- 220V 50Hz
- Pole count
- 4-pole
- Rated power
- 200 W
- Rated speed
- 1,340 RPM
Tell us your quantity, application and any specifications you’d like to customize.
Product certifications
Know the details
Technical specifications
| Motor type | Single-Phase Asynchronous |
|---|---|
| Voltage / Frequency | 220V 50Hz |
| Pole count | 4-pole |
| Rated power | 200 W |
| Rated speed | 1,340 RPM |
| CapacitorSpec | 10uF/450VAC |
Customization capabilities
For portable air conditioner applications, please provide the evaporator fan assembly, required airflow or fan load, shaft dimensions, mounting structure, voltage, frequency and operating speed for technical review.
Customization requests may include shaft dimensions, mounting arrangements, lead wire length, connector type and electrical specifications. Available changes depend on the motor design and will be confirmed after reviewing the application.
For new portable air conditioner development or replacement projects, please also provide the existing motor specifications, installation space, wiring requirements and estimated order quantity. Final specifications and sample arrangements will be confirmed before production.
A fit for your products
Send your drawings and operating requirements. Our team will help confirm the right configuration.
