Motor Product Catalog
Explore our motor range, compare specifications, and find the right fit for your products.
Explore the range
5 models available
Single-Phase Asynchronous

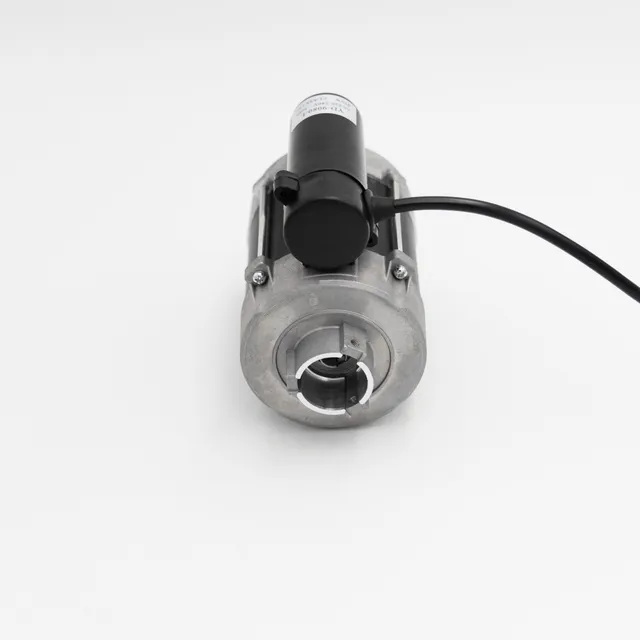

YD-9080-L 430W Diesel Torpedo Heater Motor
The YD-9080-L is a 430W single-phase AC motor designed for portable industrial diesel torpedo forced air heaters. Rated for 220V 50Hz operation at 2,800 rpm, this motor configuration is intended to work with a Danfoss gear pump as part of the heater's fuel delivery system. Contact JIUHE for motor dimensions, pump interface requirements and OEM application support.
- Rated power
- 430 W
- Rated speed
- 2,800 RPM
- Voltage / Freq.
- 220V 50Hz
- Pole count
- 2-pole
Single-Phase Asynchronous
YSK13-4 13W Air Conditioner Indoor Fan Motor
The YSK13-4 is a 13W air conditioner indoor fan motor for 220V 50Hz operation, with a speed of 1,100 rpm. It is manufactured by SHAOXING FANGPU MOTOR, a subsidiary of JIUHE. Contact JIUHE to discuss your indoor unit design, motor specifications and OEM supply requirements.
- Rated power
- 13 W
- Rated speed
- 1,100 RPM
- Voltage / Freq.
- 220V 50Hz
- Pole count
- 4-pole
Single-Phase Asynchronous

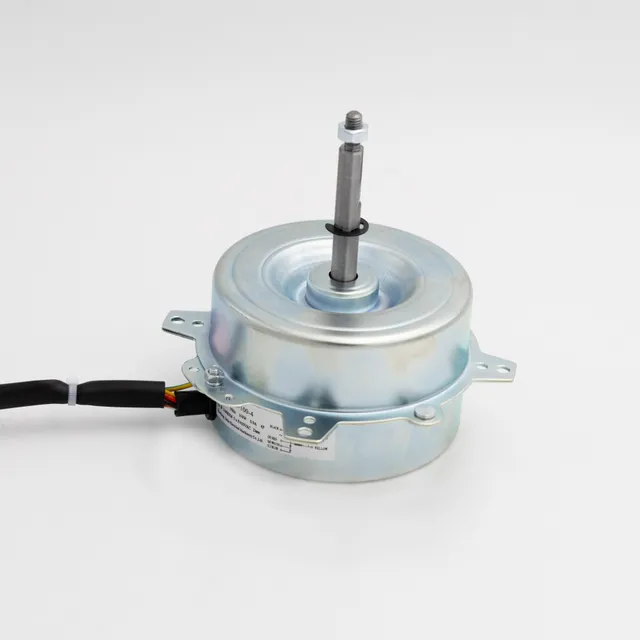

YYF-100-4 100W Evaporative Air Cooler Motor, 220V 50Hz
100W single-phase AC motor for portable evaporative air coolers, rated for 220V 50Hz operation. This 4-pole model is specified for a rated speed of 1,350 rpm and an 5 μF / 450 VAC capacitor. Send your fan assembly and mounting requirements to JIUHE to discuss integration into your cooler design.
- Rated power
- 100 W
- Rated speed
- 1,350 RPM
- Voltage / Freq.
- 220V 50Hz
- Pole count
- 4-pole
Single-Phase Asynchronous
YYF-200-4 200W Portable Air Conditioner Evaporator Fan Motor
The YYF-200-4 is an evaporator fan motor designed for portable air conditioner applications. It is used to drive the evaporator-side airflow system, helping move indoor air across the evaporator heat exchanger and circulate cooled air back into the room. Contact JIUHE with your fan assembly, mounting and electrical requirements for OEM application review.
- Rated power
- 200 W
- Rated speed
- 1,340 RPM
- Voltage / Freq.
- 220V 50Hz
- Pole count
- 4-pole
Single-Phase Asynchronous

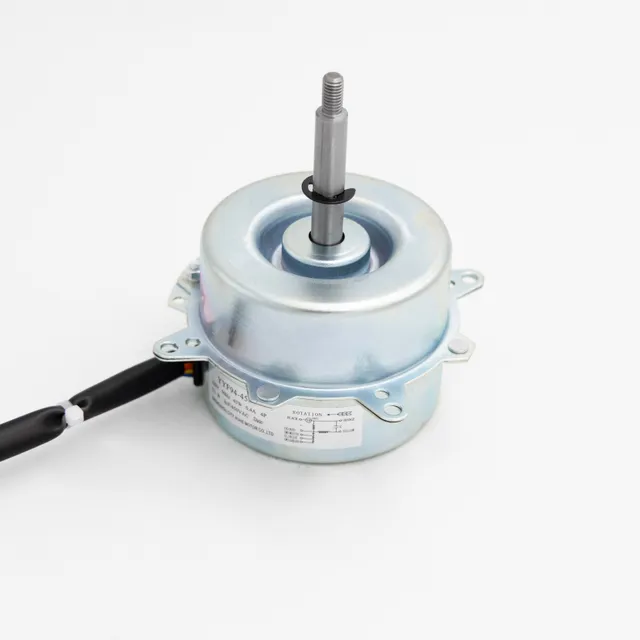

YYF94-45-4 45W Evaporative Air Cooler Motor, 220V 50Hz
45W single-phase AC motor for portable evaporative air coolers, rated for 220V 50Hz operation. This 4-pole model is specified for a rated speed of 1,350 rpm and an 3 μF / 450 VAC capacitor. Send your fan assembly and mounting requirements to JIUHE to discuss integration into your cooler design.
- Rated power
- 45 W
- Rated speed
- 1,350 RPM
- Voltage / Freq.
- 220V 50Hz
- Pole count
- 4-pole
No matching motors
Try a broader power range or remove a filter. Our team can also help with a custom configuration.
Your requirements. Our engineering.
A standard motor is just the starting point.
Discuss shaft dimensions, electrical specifications and mounting requirements with our team.
