Evaporative Air Cooler motors.
Compare motors for Evaporative Air Cooler products and find the specifications your project needs.
Explore the range
2 models available
Single-Phase Asynchronous

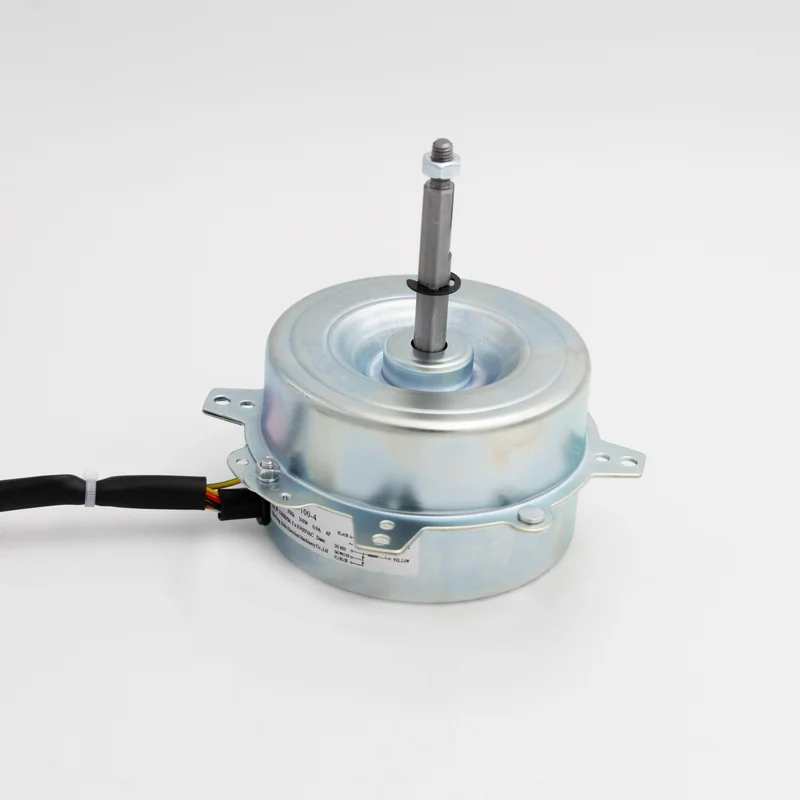

YYF-100-4 100W Evaporative Air Cooler Motor, 220V 50Hz
100W single-phase AC motor for portable evaporative air coolers, rated for 220V 50Hz operation. This 4-pole model is specified for a rated speed of 1,350 rpm and an 5 μF / 450 VAC capacitor. Send your fan assembly and mounting requirements to JIUHE to discuss integration into your cooler design.
- Rated power
- 100 W
- Rated speed
- 1,350 RPM
- Voltage / Freq.
- 220V 50Hz
- Pole count
- 4-pole
Single-Phase Asynchronous
YYF94-45-4 45W Evaporative Air Cooler Motor, 220V 50Hz
45W single-phase AC motor for portable evaporative air coolers, rated for 220V 50Hz operation. This 4-pole model is specified for a rated speed of 1,350 rpm and an 3 μF / 450 VAC capacitor. Send your fan assembly and mounting requirements to JIUHE to discuss integration into your cooler design.
- Rated power
- 45 W
- Rated speed
- 1,350 RPM
- Voltage / Freq.
- 220V 50Hz
- Pole count
- 4-pole
No matching motors
Try a broader power range or remove a filter. Our team can also help with a custom configuration.
Your requirements. Our engineering.
A standard motor is just the starting point.
Discuss shaft dimensions, electrical specifications and mounting requirements with our team.
